Color Steel Coils Coating Line from Galvanized Strip or aluminum
-
If you have any enquiry about quotation or cooperation, please feel free to use the following enquiry form. Our sales representative will contact you within 24 hours. Thank you for your interest in our products.
Basic Info
Quick Details Condition:
Product Description
Color Steel Coils Coating Line from Galvanized Strip or aluminum
- Condition:
- New
- Type:
- Coating Production Line
- Substrate:
- Iron
- Coating:
- Painting
- Place of Origin:
- Shandong, China (Mainland)
- Brand Name:
- REACHFLY
- Model Number:
- Reachfly 4
- Voltage:
- Customers Local Voltage
- Power(W):
- Customized
- Dimension(L*W*H):
- Customized Size
- Weight:
- 320 Tons
- Certification:
- ISO9001
- Warranty:
- 1 Year
- After-sales Service Provided:
- Engineers available to service machinery overseas
- Name:
- Hot Dip Galvanizing Machine Plant
- Production material:
- Iron steel ,aluminium
- Application:

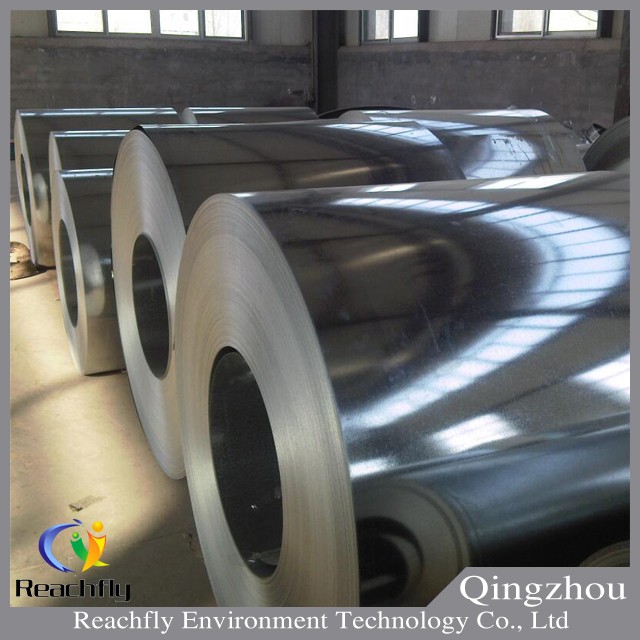

- Producing GI,PPGI,PPGL,color aluminium
- Process method:
- Cleaning,annealing,passivate,hot dipped galvanized,color coating
- Steel thickness:
- 0.14mm to 2mm
- Width of strips:
- 600-1250mm
- Packaging Details
- Standard export package
- Delivery Time
- within 3 months after receive the deposit

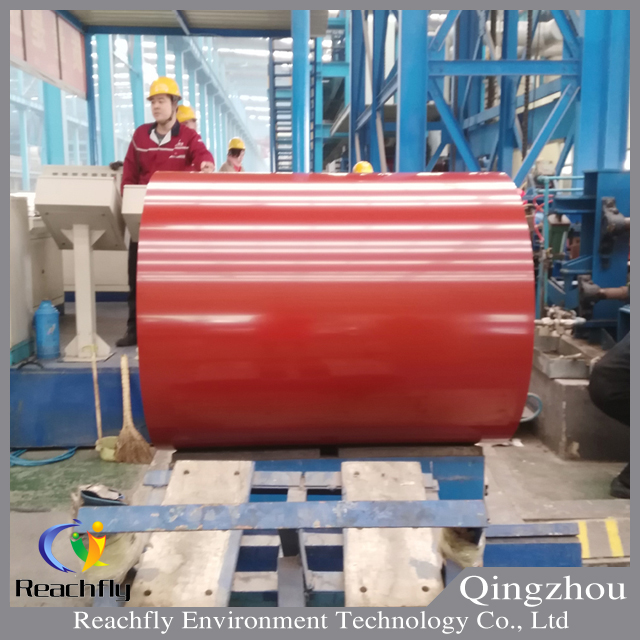

PPGI Production Line
a.Coating thickness : 0.12mm -1.5mm
b.Width: 800mm - 1250mm

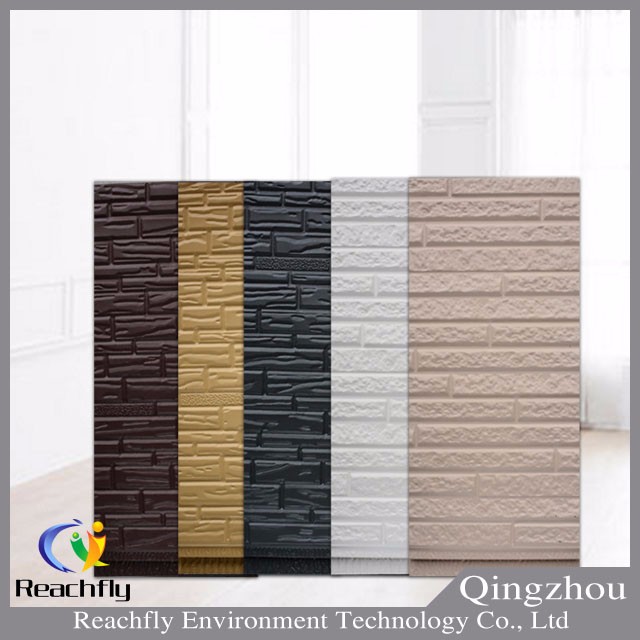

Qingzhou Reachfly Environment Technology Co.,Ltd has world's leading level production line of print-coating plate,transfer printing plate,hot fil m lamination plate,light steel keel and interior & exterior wall metal decorative insulated panel in Reachfly with perfect operation process of designing&developing,materials producing,building construction and after-sales service . Every product absorbs the advanced technology at home and abroad,which not>Color Coated Production Line Technology Data Product thickness 0.12mm-1.5mm Product width 600mm-1250mm Process speed 25-180m/min Thickness of coating 5-25um for the single-layer dry film src= ' /upLoad/et32433120903072.jpg ' style= ' width: 750px; height: 750px; margin-left: 0px; margin-top: 0px; ' />
Process flow:
1#2# Uncoiler>steering pinch roller>steering roller>confluent pinch roller>entry shear > stitcher>press burr and pinch roller>1#tension roller>entry looper>2#tension roller> degreasing> brushing>water washing>drying>chemical roller-coating machine>chemical-coating drying furnace>1#deviation-correcting machine>3#tension roller>initial coating unit>initial coating curing furnace>cooling unit>2#deviation-correctiong machine > dryer > 3 #deviation-correcting machine >4#tension roller>printing unit>fine coating unit>fine coating curing furnace>cooling unit>dryer>4#deviation-correcting machine>5#tension roller>exit looper>6#tension roller>pinch shear>steering roller>EPC deviation-correcting recoiler>inspection>package>entering warehouse
1. The application of roller coating method having advanced process and high chemical film quality guarantees the performance and quality of coating of colored plates. Besides,the chemical treatment agent is almost used>2. The roller-coating machine is equipped with pressure sensor to precisely display the pressure of coating roller,which can precisely control the coating evenness,and through the variable-frequency speed control of vector motor,the machine can execute forward or backward coating operation and can precisely control the thickness of coating to be within 1 micrometer,so as to adapt to the production requirements of various products.
3. The printing process adopts three-color over-printing technology and the printer adopts digital control technology,making the thickness of printing coat be less than 1 micrometer and mach color automatically,thus to effectively control the printing precision and color.
