Steel Coil Coating Line / Colour Coated Steel Coating Production Line PPGI PPGL PPCR
-
If you have any enquiry about quotation or cooperation, please feel free to use the following enquiry form. Our sales representative will contact you within 24 hours. Thank you for your interest in our products.
Basic Info
Steel Coil Coating Line / Colour Coated Steel Coating Production Line PPGI PPGL PPCRMain Parameters:
Product Description
Steel Coil Coating Line / Colour Coated Steel Coating Production Line PPGI PPGL PPCR
Steel Coil Coating Line / Colour Coated Steel Coating Production Line PPGI PPGL PPCR
Main Parameters:
Raw material
Galvanized steel plate ect.
Thickness
0.20-0.8mm
Width
600-1250mm (adjustable)
Inner dia. of coil
500mm-600mm
Outer dia. of coil
1500mm(Max)
Weight of coil
16MT(Max)
Production speed
60m/min(Max) for thickness 0.23-0.35mm
45m/min(Max)for thickness 0.40-0.80mm
Maximal speed of entry and exit
80m/min(Max) for thickness 0.23-0.35mm
60 m/min(Max)for thickness 0.40-0.80mm
Description:
1. The waste gas in oven can be recycled by burning for heat
2. With multi-module PLC control system
3. Easy operation and high precision
4. Raw material can be galvanized steel plate, Zinc-Al plate and cold rolled plate etc.
Applications:
Steel coil coating line is roboticized equipment, which connect the advanced technique and abundant experience both in China and overseas. It has reduced much in investment, shortened the time of production, expedited and advanced the rate of profits. We use the technique of calefaction in many areas, sirocco and reuse the exhaust gas, in order to obtain environmental protection, power economization, low noise and waste. It can be used in every sort of paint and worked-liquor for any factories.
Product Tags:
colour coating line
colour coaters

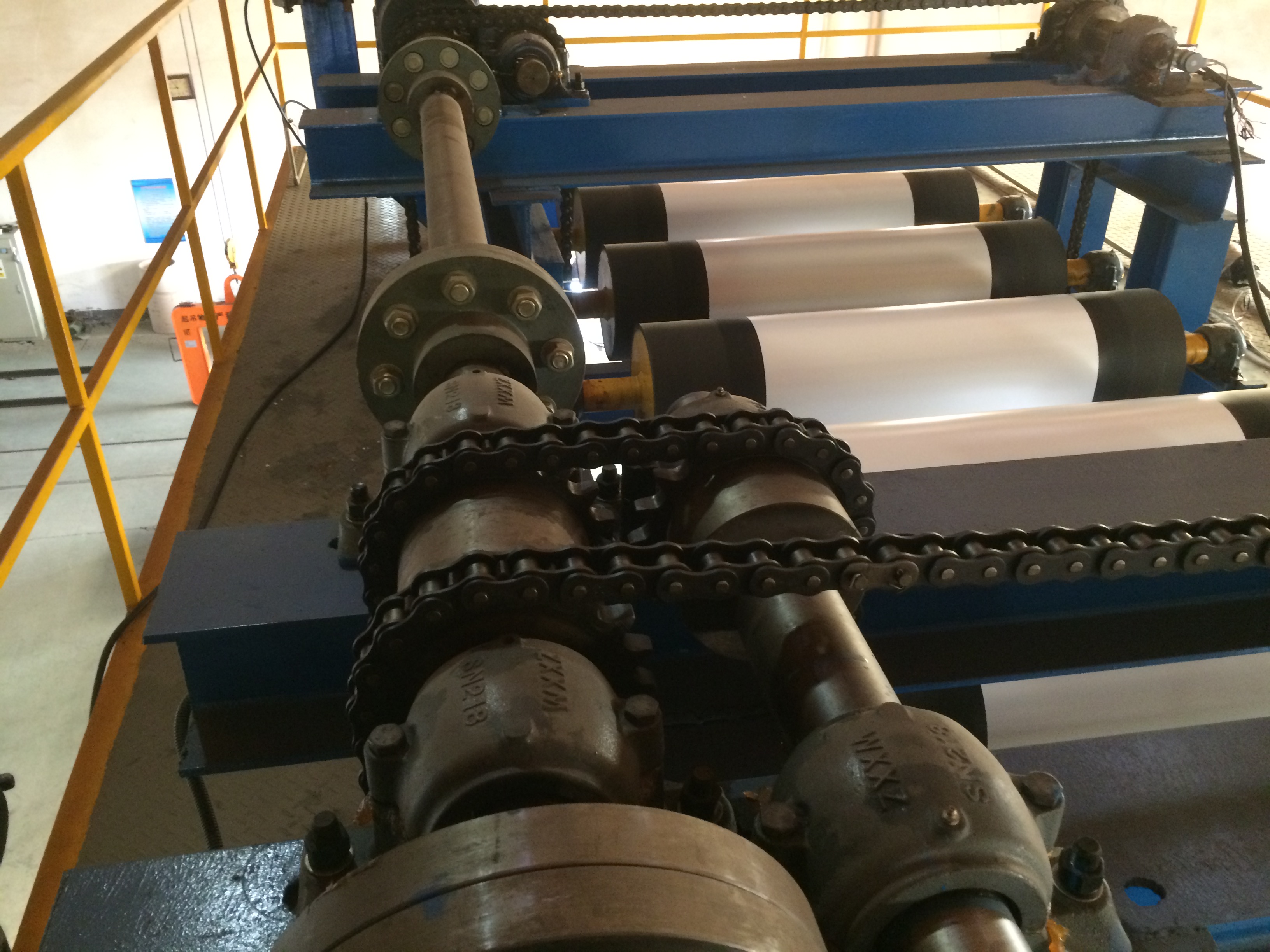

Steel Coil Coating Line / Colour Coated Steel Coating Production Line PPGI PPGL PPCR Images
COLOR COATING LINE
