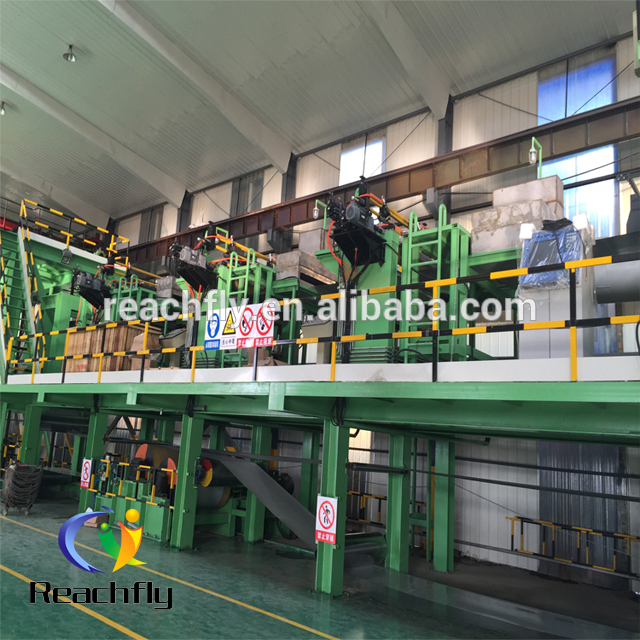

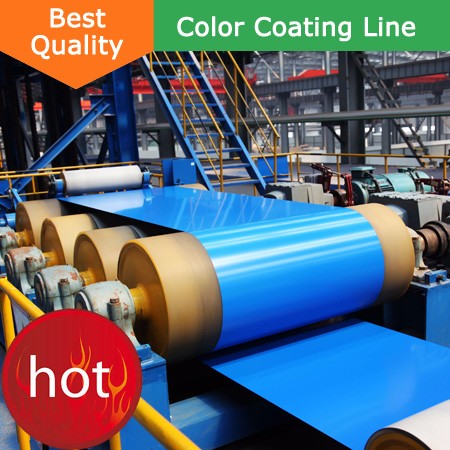

Color Coating Machine, PPGI Printing Production Line Equipment

Quick Details
Condition:
New
Type:
Coating Production Line
Substrate:
Steel
Coating:
Coil Coating
Place of Origin:
Shandong, China (Mainland)
Brand Name:
REACHFLY
Model Number:
REACHFLY- Patterns-printing Machine
Voltage:
380V
Power(W):
Multi Power
Dimension(L*W*H):
Customized Size
Weight:
320T
Certification:
CE ISO9001
Warranty:
>
After-sales Service Provided:
Engineers available to service machinery overseas
Equipment Name:
Color Coating Machine, PPGI Printing Production Line Equipment
Coating color:
RAL Color
Application:
Industries
Usage:
various
Technology:
steel coating
Kinds of coating:
Epoxy Coatings
Coating film:
Decorative Film
Thickness of coil:
0.12-1.2MM
Process speed:
25-180m/min
Width of strips:
600-1650mm
Packaging & Delivery
Packaging Details
seaworthy package or can be customized.
Delivery Time
three months
Video Description Product Description



1  Basic Material:

1) Steel grade of incoming coil : Al, GI

2) Product coil : PCM coil

3) Coating material : Polyester, PVDF  and others



2  Production Line Specification

1) Strip dimension

Thickness : Min. 0.2   ~ Max. 3 mm(Al)

                     Min. 0.12 ~ Max. 1.50mm(GI)

Width : Min. 600 ~ Max. 1,650 mm (GI)

             Min. 800 ~ Max. 1,800 mm (Al)

2) Coil dimension

Entry

Inner diameter : Φ508 mm

Outer diameter : ΦMin. 800 ~ Max. 2,000 mm

Weight : 10 tons Max

Product

Inner diameter : Φ508

Outer diameter : ΦMin. 800 ~ Max. 2,000 mm

Weight : 3tons to 10tons normally



3) Line speed

Entry section : Max. 90mpm

Process section : Max. 68mpm

Exit section : Max. 90mpm



3. Coating conditions



1) Coater

Description

Coating Thickness

( Dry )

Solid

Volume (%)

Prime CoaterTOPMax. 10 mm45 BOTTOMMax. 5 mm45Finish CoaterTOPMax. 25 mm50 BOTTOMMax. 5 mm50



2) Chemical Coater

DescriptionCoating Thickness ( Wet )SolidChemical coaterTOP3 g-5g/m2Water baseBOTTOM3 g-5g/m2Water base



Company Information

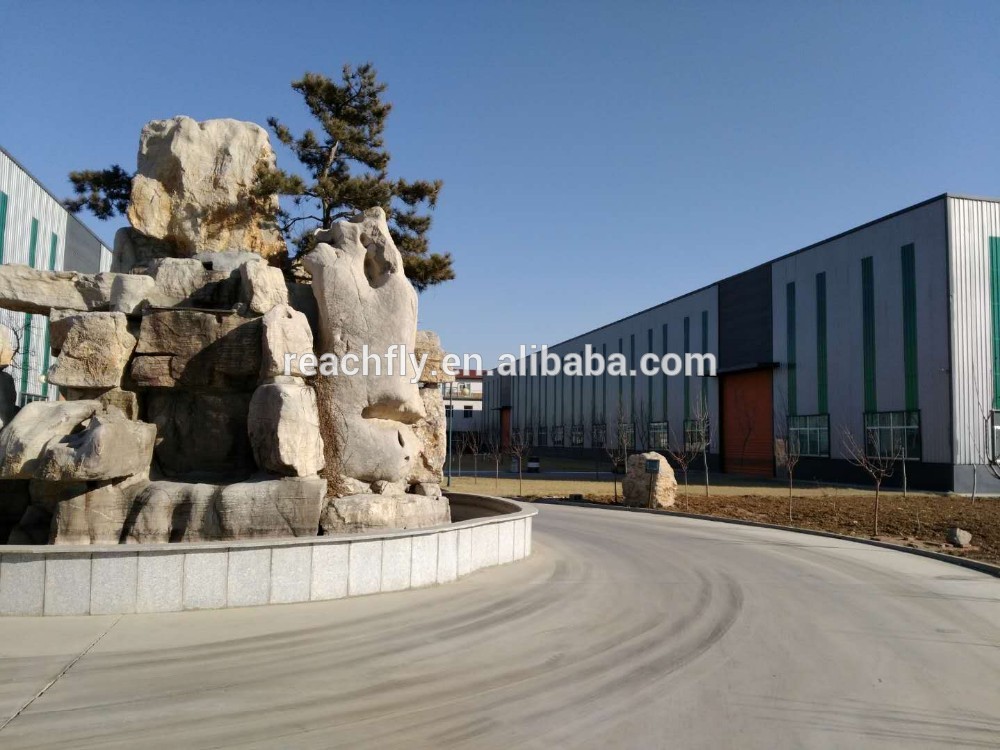

 Qingzhou Reachfly Environment Technology Co., Ltd is a integrated high-tech enterprise which focuses>interior & exterior wall metal decorative insulated panel, equipment for producing the panels, PPGI production line machine and related products.
