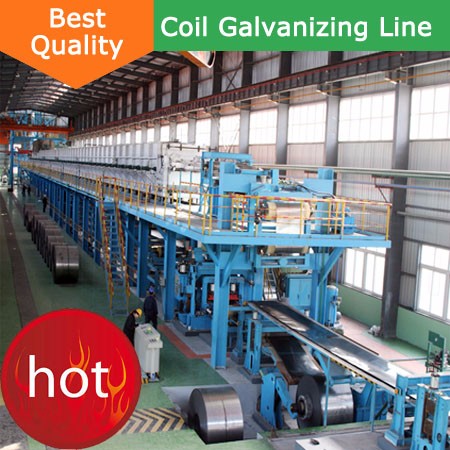

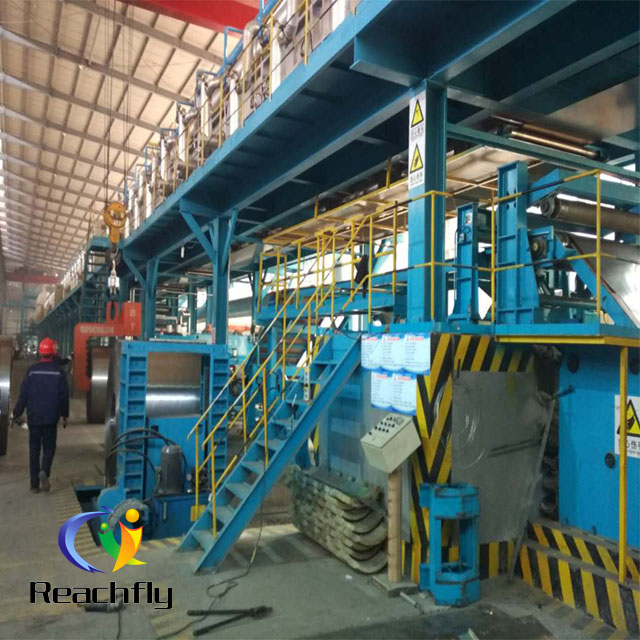

Hot Dip Continuous Galvanizing Production Line
-
If you have any enquiry about quotation or cooperation, please feel free to use the following enquiry form. Our sales representative will contact you within 24 hours. Thank you for your interest in our products.
Basic Info
Quick Details Place of Origin:
Product Description
Hot Dip Continuous Galvanizing Production Line
- Place of Origin:
- Shandong, China (Mainland)
- Brand Name:
- REACHFLY
- Model Number:
- REACHFLY- Galvanizing Machine
- After-sales Service Provided:
- Engineers available to service machinery overseas
- Condition:
- New
- Product name:
- Hot Dip Continuous Galvanizing Production Line
- Weight:
- 100T
- Power:
- 800W
- Dimension:
- 80000x8000x6000mm
- Substrate:
- steel
- Screw Design:
- double-screw
- Galvanizing:
- coil galvanizing
- Voltage:
- 380V
- Warranty:
- 1 Year
- Packaging Details
- wooden case and PE film or customized package.
- Delivery Time
- Shipped in 90days after deposit
Hot Dip Continuous Galvanizing Production Line
Technical Parameter
Process method: American- steel – union
Material: cold rolled carbon structure steel, qualified carbon structure steel and low alloy steel roll
Steel type: 08AL,SPCC,SPCD ,SPCE
Layer condition: normal spangle, small spangle, skin pass spangle
Layer weight: GI:GB/T2518-88
Layer thickness range(two side): 40—300 g/m2
Layer control method: air knife
Treatment after galvanized: skin pass, stretch, anti-fingerprint coating/chromate coating
Continuous annealing furnace: horizontal/vertical , electricity, natural gas, coal gas, etc
Zinc pot: main frequency induction heating ceramic zinc pot
Skin pass: four-tandem, bottom support roller AC frequency driving
Tension leveler: single bending & single stretching /double bending & single stretching/two bending & two stretching, elongation among 0.5~2.0%
Driving control: main drive adopt SIEMENS AC complexor frequency control system
Quality standard: GI:GB/T2518-2004
Our CompanyQingzhou Reachfly Environment Technology Co., Ltd.

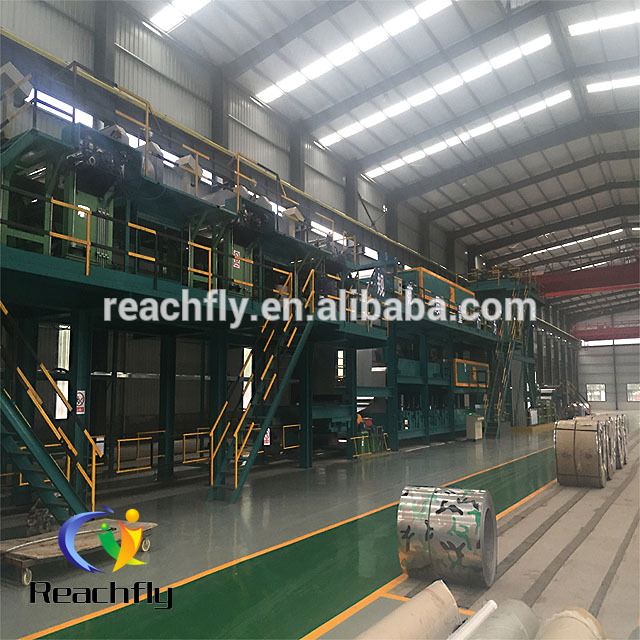

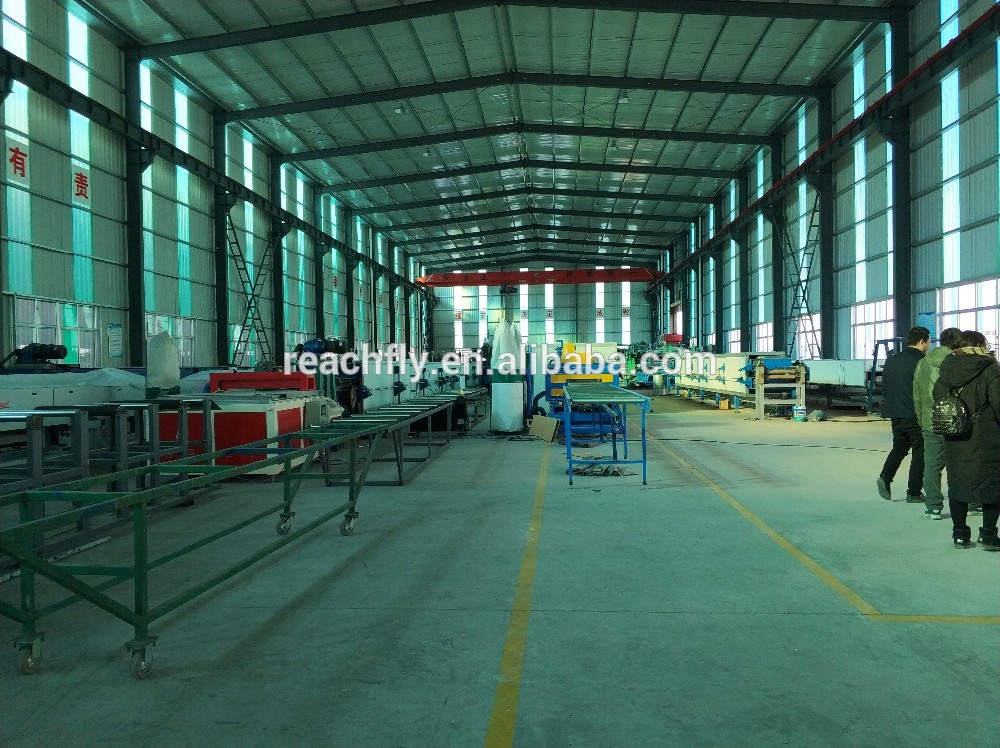

Qingzhou Reachfly Environment Technology Co., Ltd is a integrated high-tech enterprise which focuses src= ' /upLoad/et32466120906036.jpg ' style= ' width: 750px; height: 562.5px; margin-left: 0px; margin-top: 0px; ' />Workshop show
FAQ
Q: Are you trading company or manufacturer ?
A: We are factory. Welcome to visit any time.
Q: How long is your delivery time?
A: According to customer's requirements for the equipment quantity.
