PPGI & PPGL production line, equipment to produce colored steel or aluminum coils

Quick Details

Condition:

New

Type:

Coating Production Line

Substrate:

Steel

Coating:

Coil Coating

Place of Origin:

Shandong, China (Mainland)

Brand Name:

REACHFLY

Model Number:

REACHFLY-PPGI Machine

Voltage:

380V

Power(W):

Multi Power

Dimension(L*W*H):

Customized Size

Weight:

320T

Certification:

CE ISO9001

Warranty:

>

After-sales Service Provided:

Engineers available to service machinery overseas

Equipment Name:

PPGI production line, equipmrnt set to produce steel or aluminum coils

Coating color:

RAL Color

Application:

Industries

Usage:

various

Technology:

steel coating

Kinds of coating:

Epoxy Coatings

Coating film:

Decorative Film

Thickness of coil:

0.12-1.2MM

Process speed:

25-180m/min

Width of strips:

600-1650mm

Packaging & Delivery

Packaging Details

seaworthy package or can be customized.

Delivery Time

three months

Video Description Product Description



1  Basic Material:

1) Steel grade of incoming coil : Al, GI

2) Product coil : PCM coil

3) Coating material : Polyester, PVDF  and others



2  Production Line Specification

1) Strip dimension

Thickness : Min. 0.2   ~ Max. 3 mm(Al)

                     Min. 0.12 ~ Max. 1.50mm(GI)

Width : Min. 600 ~ Max. 1,650 mm (GI)

             Min. 800 ~ Max. 1,800 mm (Al)

2) Coil dimension

Entry

Inner diameter : Φ508 mm

Outer diameter : ΦMin. 800 ~ Max. 2,000 mm

Weight : 10 tons Max

Product

Inner diameter : Φ508

Outer diameter : ΦMin. 800 ~ Max. 2,000 mm

Weight : 3tons to 10tons normally



3) Line speed

Entry section : Max. 90mpm

Process section : Max. 68mpm

Exit section : Max. 90mpm



3. Coating conditions



1) Coater

Description

Coating Thickness

( Dry )

Solid

Volume (%)

Prime CoaterTOPMax. 10 mm45 BOTTOMMax. 5 mm45Finish CoaterTOPMax. 25 mm50 BOTTOMMax. 5 mm50



2) Chemical Coater

DescriptionCoating Thickness ( Wet )SolidChemical coaterTOP3 g-5g/m²Water baseBOTTOM3 g-5g/m²Water base



Company Information

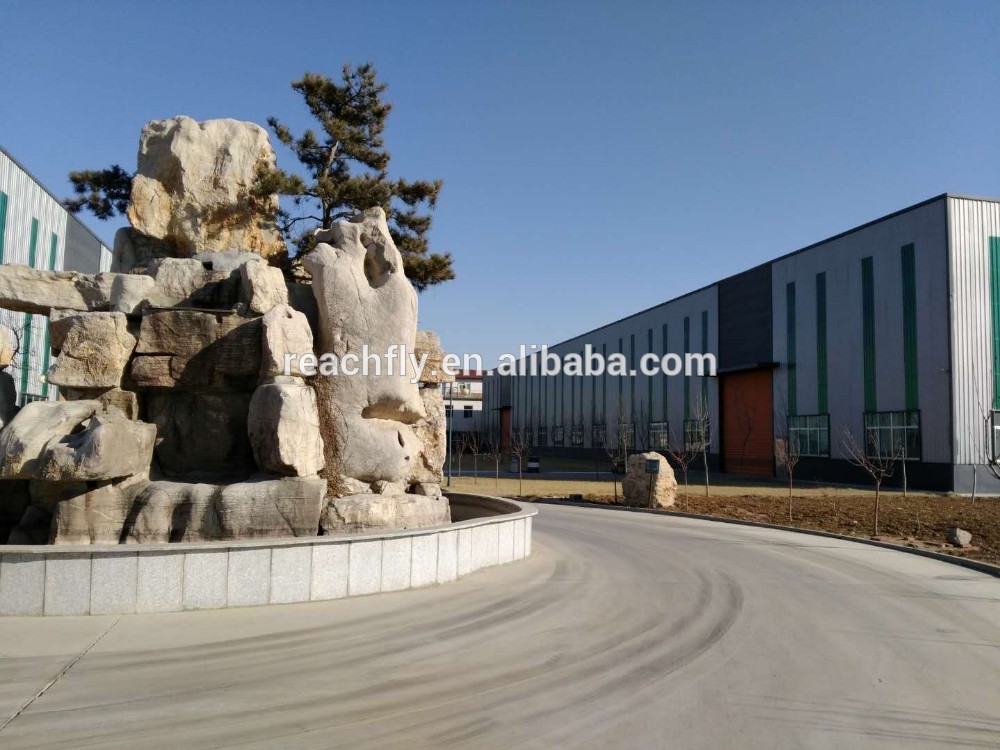

Qingzhou Reachfly Environment Technology Co., Ltd is a integrated high-tech enterprise which focuses>
