High production zinc coating hot dipped galvanized galvanizing machine

Quick Details

Condition:

New

Type:

Coating Production Line

Substrate:

Steel

Coating:

Galvanizing

Place of Origin:

Jiangsu, China (Mainland)

Brand Name:

SINOPOWER

Model Number:

galvanizing machine-66

Voltage:

110V/120V/127V/208V/220V /240V/380V/415V/460V

Power(W):

Customize

Dimension(L*W*H):

Customize

Weight:

Customize

Certification:

CE ISO9001

Warranty:

18 Months

After-sales Service Provided:

Engineers available to service machinery overseas

Name:

hot dip galvanizing machine plant

Raw material:

aluminum, steel, stainless steel

Coil Thickness:

0.2-2.5mm

Coil Width:

800~2200mm

Process method:

cleaning and continuous hot dip plating after annealing

production of energy:

soft water, compressed air, steam and electricity,etc

Model:

double/single work line

Packaging & Delivery

Packaging Details

Big machine of steel coil hot dip galvanizing machine shipped as bulk cargo, fixed by steel coil and belt in containers.
Small parts and electrical parts, control system are packaged by box.

Delivery Time

90 days

Galvanizing Machine

High production zinc coating hot dipped galvanized galvanizing machine

Machine name: hot dipped galvanized
The SIONPOWER zinc coating machine is for zinc coating. The cold-rolled steel strip send to continuous hot-dip galvanizing line to electrolytic cleaning, and then send to be annealed in the continuous annealing furnace. After annealed, dip the plate in the molten zinc pot for hot-dip galvanization. The product is finally formed after finishing, straightening, and passivation process.
The galvanized strip is a long and narrow strip of steel, which is coated with a different degree of the raw material called (zinc). The galvanizing machine has the advantages of even coating, strong adhesion and long service life, etc. The complex physical and chemical reaction in the bath of hot dip galvanized steel substrate and melting, forming a resistant compact structure the anti-corrosion of Zn Fe alloy layer. The alloy layer is integrated with the pure zinc layer and the strip matrix. Therefore, its corrosion resistance.



1: Main parameters of hot dipped galvanized

Strip Thickness0.2-1.0mm / 1.2-2.5mmStrip Width800-1600mmWork speed80-150m/minProcess methodcleaning and continuous hot dip plating after annealingEnergy Sourcessoft water, compressed air, steam, natural gas and electricity, etc.Standardsup to GB12754/91 & international applicationMark: About are our standard series zinc coating machine, we also accept customized.

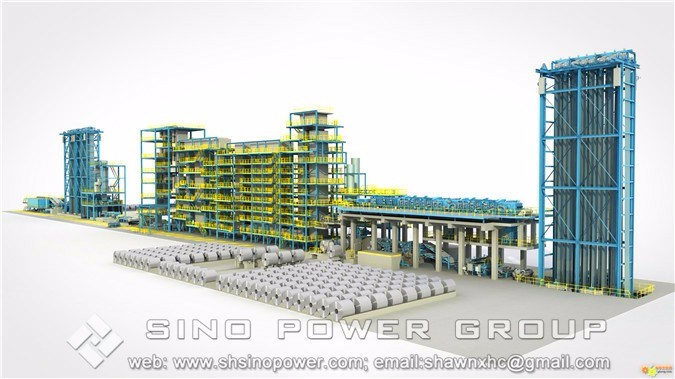

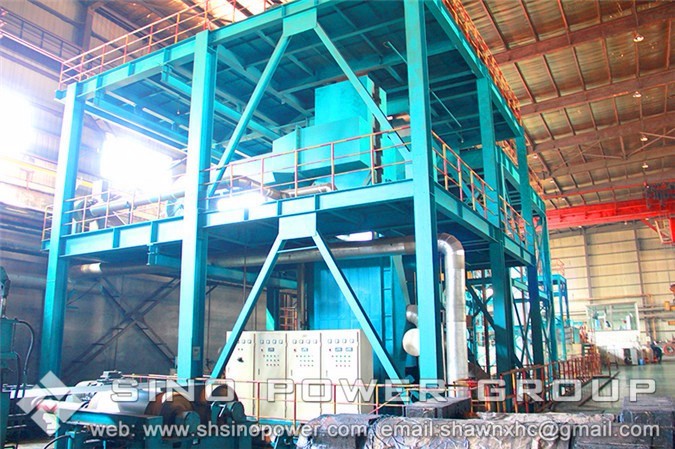

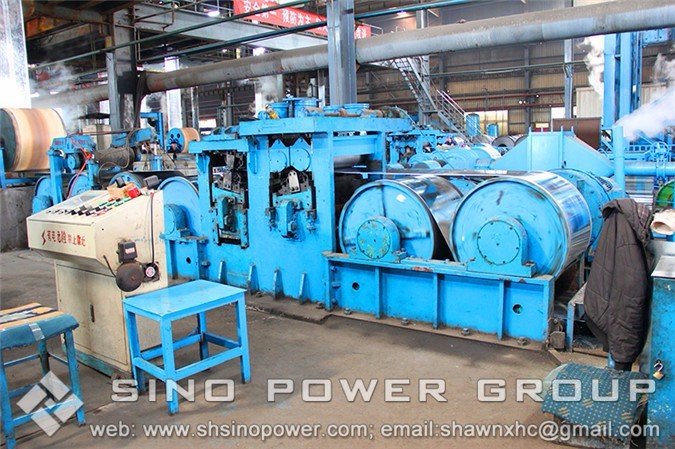

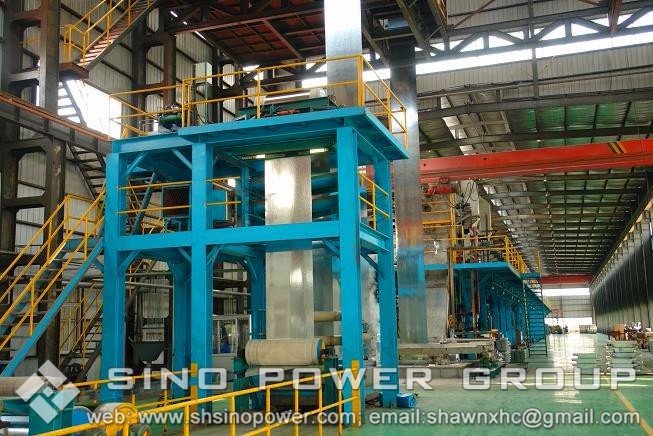

2: Whole review of galvanizing machine

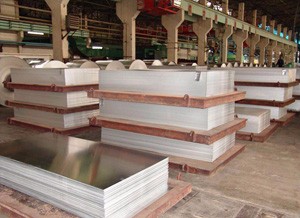

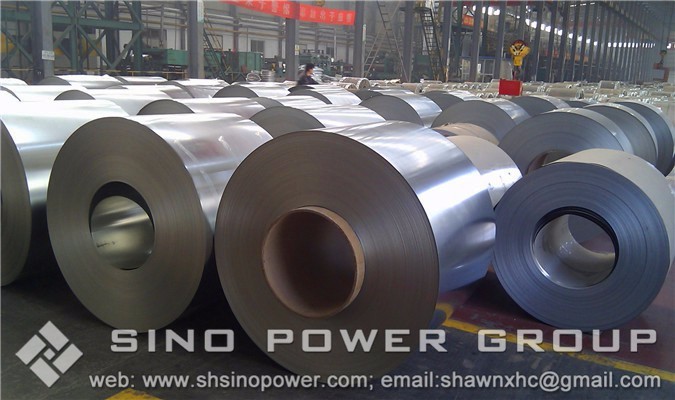

3: Final products produced by our hot dipped galvanized

Our zinc coating machinehot dip galvanizing machine can produce HR, CR, PPGI, GI, SS, Aluminum Copper coil to strip, the min width can be 20 mm.

Flow Chart & Machine

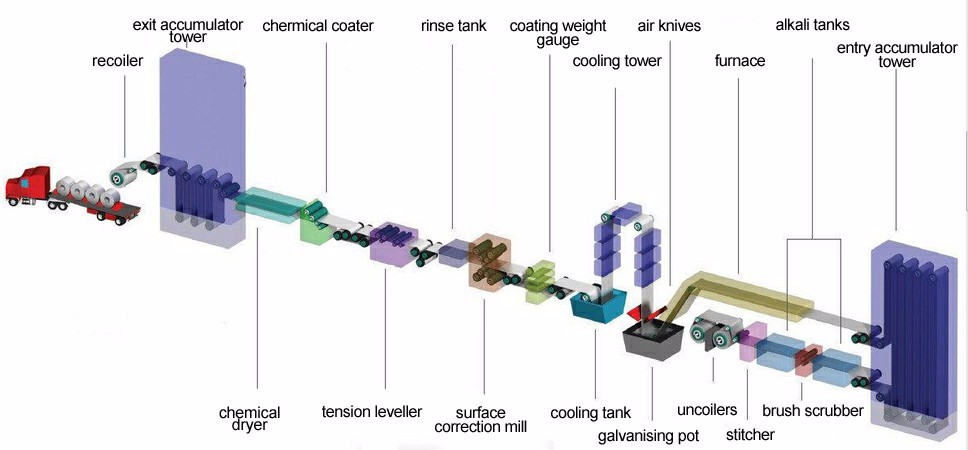

Standard Flow chart of hot dipped galvanized:

Open-book unit haul car → unwinding pinch machine welding machine cutting machine → tension machine → hot-air purge cleaning unit of the device device → tension machine → furnace measuring tension machine → hot Zhang Ji Zinc pot furnace nose → six-arm three-roll cooling tower air knife → steering roller cooling unit air-cooled unit → hot air blowing device src= ' /upLoad/et32364120849556.jpg ' style= ' width: 750px; height: 498.889px; margin-left: 0px; margin-top: 0px; ' />Packing & Delivery

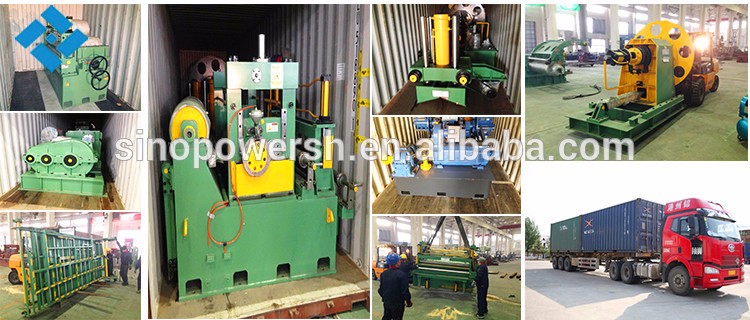

Package by plywood case, Load in containers, and Shipping by Sea/ Truck / Train.

Company Introduce

1: Introduce

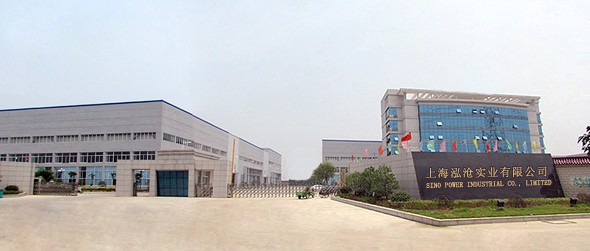

Sino Power Group is the professional manufacturer with the factory covers an area of 85,000 Square meters and has more than 200 employees and over 25 years>SINOPOWER INDUSTRIAL have With the ISO9001 quality control system, ISO1400 management system and CE / SGS standard of European Union,, also presented quite a few patents rights. Besides, we also become a member of the CE warranty system. For this steel sheet slitting machine, we added the PLC encoded control by Touchscreen, with intelligent processing method, it can control the exact details of the output pipes in a method that is actual precise.
