PPGI color coating equipment, process production line

PPGI color coating equipment, process production line

    If you have any enquiry about quotation or cooperation, please feel free to use the following enquiry form. Our sales representative will contact you within 24 hours. Thank you for your interest in our products.
  • Name:

  • Phone:

  • Email :

  • Content:

Basic Info

Quick Details Condition:

Product Description

PPGI color coating equipment, process production line

Quick Details
Condition:
New
Application:
construction material
Plastic Processed:
PU sandwich panel
Screw Design:
Double-screw
Automatic Grade:
Automatic
Place of Origin:
Shandong, China (Mainland)
Brand Name:
REACHFLY
Model Number:
REACHFLY-PPGI Machine
Voltage:
380V 50HZ 3Phase(Customized)
Power(W):
20.5KW
Dimension(L*W*H):
6500*1300*1100
Weight:
20T
Certification:
ISO9001:2008
After-sales Service Provided:
Engineers available to service machinery overseas
Name:
PPGI color coating equipment, process production line
Width of strip steel:
800-1800
Base plate:
Hot aluminum plate,aluminum alloy plate
Process speed:
20-120m/min
Thickness of strip:
0.2-3mm
Outer diameter of aluminum coil:
800-2000mm
Color:
Customizable
Warranty:
Installation
Thickness of coating:
Max 40μm
Production capacity:
20,000-60,000 T/Year
Packaging & Delivery
Packaging Details
naked, PE film package or customized.
Delivery Time
Within 45 working days after received deposit
Product DescriptionPPGI color coating equipment, process production line

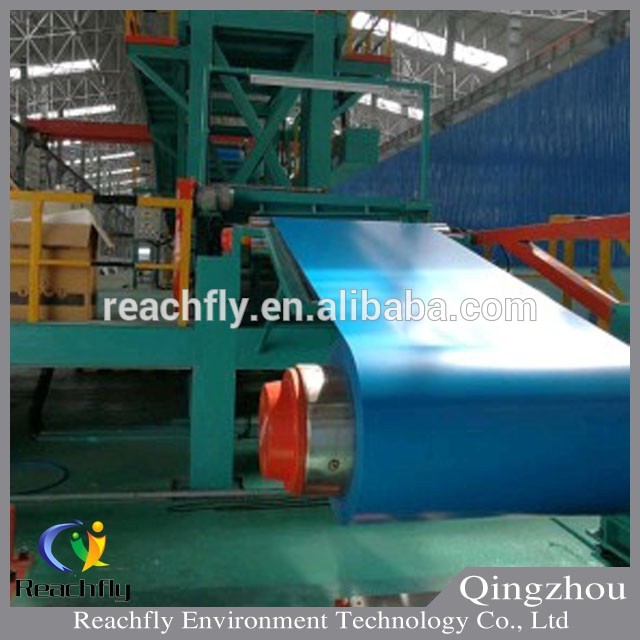

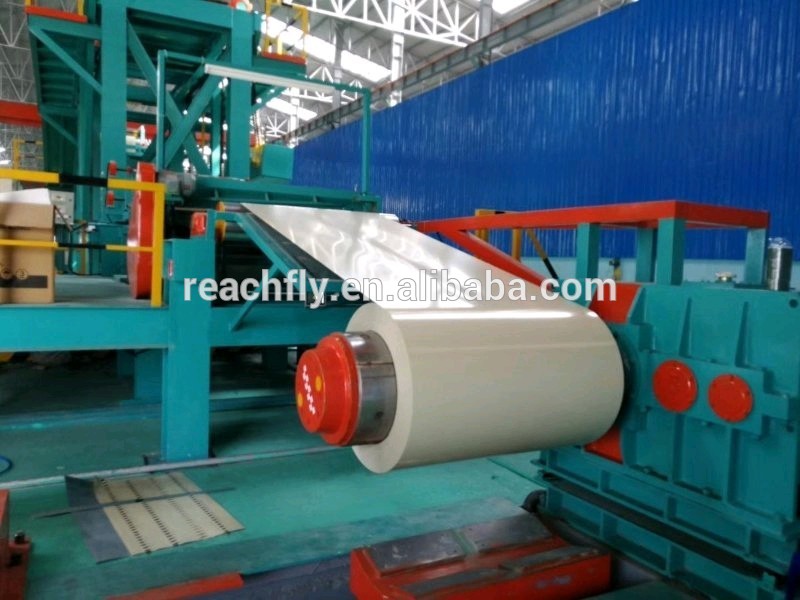

The production line of colored steel sheet is a complete of production equipment for colored steel sheet, and the process is as follows: make the steel coil strips be subject to surface degreasing treatment, then apply multi-layer organic coatings (e.g., nano-coating, self-cleaning coating, scratch-resistant coating, fingerprint-resistant coating etc. )>
Standard JISG3312/CGCC/AISI/ASTM Thickness 0.14-1.5mm (+-0.02mm) Width 600-1250mm (+-2mm) Zinc coating Z30-275g/m2 Color coating Top:5-20µm Back:5-15µm Color RAL code and as per client Coil ID 508/ 610mm Coil weight 3-8MT or as client requirement  Min order 25ton(one container) Base metal galvanized steel coil (GI) or galvalume steel coil (GL) Payment terms T/T or L/C Delivery terms FOB/CFR/CIF/EXW Delivery time Within 25 days after received the deposit or as client requirement Packing Standard seaworthy export packing Supply ability 6000-10000 ton per month Certification ISO9001:2008 Major market South America,European country,Mid-east,Asia,Africa etcDetailed Image


1)The pretreatment applies continuous circulating alkali spraying, scrubbing and multi-stage circulating water spraying and fresh water spraying to enhance washing effect, clean the strip steel surface, guarantee the coating quality and strengthen the adhesive force between the plate strip surfaces and the glue coatings.


2) The equipment applies advanced roller coating process, with coating and drying src= ' /upLoad/et32435120903074.jpg ' style= ' width: 750px; height: 562.5px; margin-left: 0px; margin-top: -124px; ' />


Qingzhou Reachfly Environment Technology Co., Ltd is a integrated high-tech enterprise which focuses src= ' /upLoad/et32435120903075.jpg ' style= ' width: 200px; height: 200px; margin-left: 0px; margin-top: 0px; ' />FAQ

Q: Are you trading company or manufacturer ?

A: We are factory. Welcome to visit any time.

Q: How long is your delivery time?

A: According to customer's requirements for the equipment quantity.
