Production line of colored steel and aluminum coils
-
If you have any enquiry about quotation or cooperation, please feel free to use the following enquiry form. Our sales representative will contact you within 24 hours. Thank you for your interest in our products.
Basic Info
Quick Details Condition:
Product Description
Production line of colored steel and aluminum coils
- Condition:
- New
- Application:
- construction material
- Plastic Processed:
- PU sandwich panel
- Screw Design:
- Double-screw
- Automatic Grade:
- Automatic
- Place of Origin:
- Shandong, China (Mainland)
- Brand Name:
- REACHFLY
- Model Number:
- REACHFLY-PPGI Machine
- Voltage:
- 380V 50HZ 3Phase(Customized)
- Power(W):
- 650KW
- Dimension(L*W*H):
- Customized
- Weight:
- 20T
- Certification:
- ISO9001:2008
- After-sales Service Provided:
- Engineers available to service machinery overseas
- Name:
- Production line for colored steel coil/sheet
- Width of strip steel:
- 800-1800
- Base plate:
- Hot steel/aluminum plate,aluminum alloy plate
- Process speed:
- 20-120m/min
- Thickness of strip:
- 0.2-3mm
- Outer diameter of aluminum coil:
- 800-2000mm
- Color:
- Customizable
- Warranty:
- Installation
- Thickness of coating:
- Max 40μm
- Production capacity:
- 20,000-60,000 T/Year
- Packaging Details
- Main parts naked. Small parts with film or wooden cases.
- Delivery Time
- Within 60 working days after received deposit

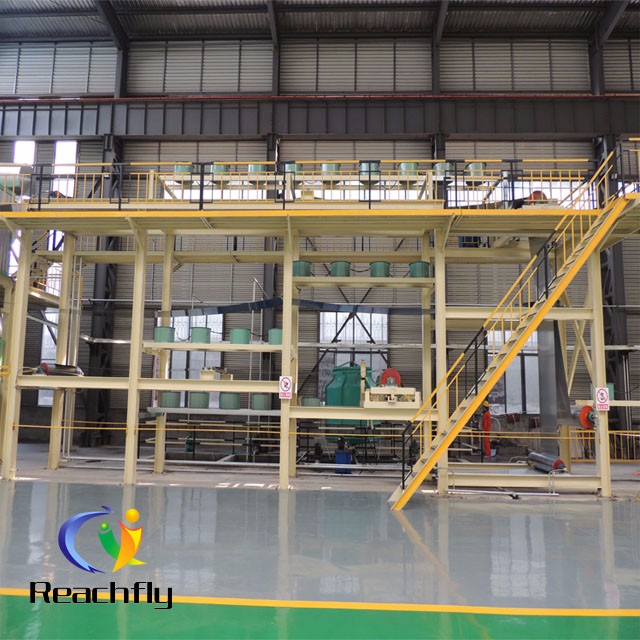

Production line of colored aluminum plate
The production line of colored aluminum plate is a complete of production equipment for colored aluminum plate, and the process is as follows: make the aluminum coil strips be subject to surface degreasing treatment, then apply multi-layer organic coatings (e.g., nano-coating, self-cleaning coating, scratch-resistant coating, fingerprint-resistant coating etc. ) src= ' /upLoad/HTB1.leLngn.PuJjSZFkq6A_lpXa5.jpg ' style= ' width: 371px; height: 371px; margin-left: 0px; margin-top: -41px; ' />
Main Features:
1)The pretreatment applies continuous circulating alkali spraying, scrubbing and multi-stage circulating water spraying and fresh water spraying to enhance washing effect, clean the strip steel surface, guarantee the coating quality and strengthen the adhesive force between the plate strip surfaces and the glue coatings.
2) The equipment applies advanced roller coating process, with coating and drying>3) The composite process adopts high-temperature high-pressure technology, and thus to reach high peeling strength.
Our Company
Qingzhou Reachfly Environment Technology Co., Ltd is a integrated high-tech enterprise which focuses>Q: Are you trading company or manufacturer ?
A: We are factory. Welcome to visit any time.
Q: How long is your delivery time?
A: According to customer's requirements for the equipment quantity.
SINGLE MACHINE IN COLOR COATING LINE
