ppgi steel coil production machine in China
-
If you have any enquiry about quotation or cooperation, please feel free to use the following enquiry form. Our sales representative will contact you within 24 hours. Thank you for your interest in our products.
Basic Info
Quick Details Screw Design:
Product Description
ppgi steel coil production machine in China
- Screw Design:
- Double-screw
- Place of Origin:
- Shandong, China (Mainland)
- Brand Name:
- REACHFLY
- Model Number:
- Reachfly 4
- Voltage:
- Customers Local Voltage
- Power(W):
- Customized
- Dimension(L*W*H):
- Customized Size
- Weight:
- 320 Tons
- Certification:
- ISO9001
- After-sales Service Provided:
- Engineers available to service machinery overseas
- Name:
- Hot Dip Galvanizing Machine Plant
- Production material:
- Iron steel ,aluminium
- Application:
- Producing GI,PPGI,PPGL,color aluminium
- Process method:
- Cleaning,annealing,passivate,hot dipped galvanized,color coating
- Steel thickness:
- 0.14mm to 2mm
- Width of strips:
- 600-1250mm
- Warranty:
- 1 Year
- Substrate:
- Iron
- Condition:
- New
- Type:
- Coating Production Line
- Packaging Details
- Standard export package
- Delivery Time
- within 3 months after receive the deposit

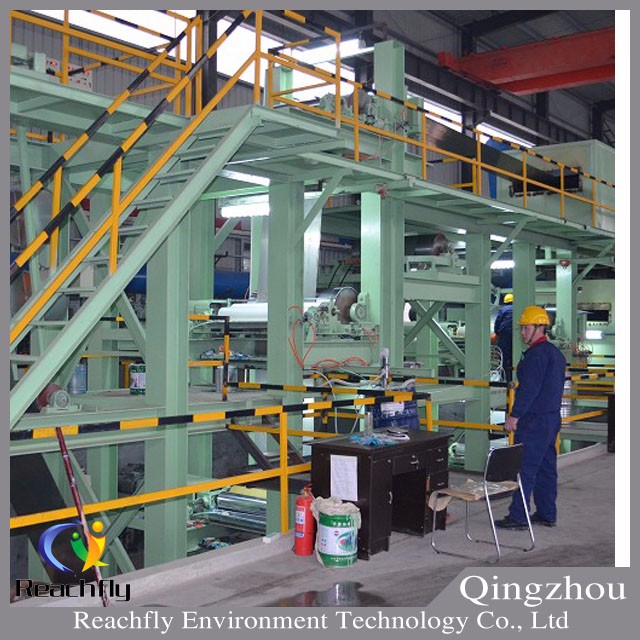

PPGI Production Line
a.Coating thickness : 0.12mm -1.5mm
b.Width: 800mm - 1250mm
Qingzhou Reachfly Environment Technology Co.,Ltd has world's leading level production line of print-coating plate,transfer printing plate,hot fil m lamination plate,light steel keel and interior & exterior wall metal decorative insulated panel in Reachfly with perfect operation process of designing&developing,materials producing,building construction and after-sales service . Every product absorbs the advanced technology at home and abroad,which not>Color Coated Production Line Product thickness 0.12mm-1.5mm Product width 800mm-1250mm Coil weight 3-8 tons Coil ID 508mm/610mm Color Ral color Thickness of color coating top 15-25um, back 5-8um Contact person Luna Liu Mobile/what's app : +86 13361579506
Produce processing
Decoiler------Gripper------Clipper------Sewing Machine------Burr Masher------Tension Machine------Entry Looped------Tension Machine------Soak Degreasing------Drying Machine------Defatted Liquid Spray------Brush Machine------Drying Machine------Drying Machine------Water Cleaning------Brush Machine------Drying Machine------Soak water------Steam dry oven------Passivating machine------Passivating dry oven------Rectify deviation machine------Tension Machine------Bottom coating machine------Primary coating dry oven------Recetify deviation machine------Tension machine------Printing machine------Finishing machine------finishing coating dry oven------cooling system------rectify deviation machine------water cooling------drying machine------Tension machine------Exits looped------Tension machine------Film covering machine------Clipper------Recoiler
