Manufacture polyurethane wall panel production line machine
-
If you have any enquiry about quotation or cooperation, please feel free to use the following enquiry form. Our sales representative will contact you within 24 hours. Thank you for your interest in our products.
Basic Info
Quick Details Place of Origin:
Product Description
Manufacture polyurethane wall panel production line machine
- Place of Origin:
- Shandong, China (Mainland)
- Brand Name:
- Reachfly
- Model Number:
- REACHFLY-panel machine
- After-sales Service Provided:
- Engineers available to service machinery overseas
- Product Name:
- Manufacture polyurethane wall panel production line machine
- Color:
- Blue or customized
- Weight:
- 30 T
- Power:
- 20KW
- Type:
- Hydraulic PLC control
- Certification:
- ISO9001
- Usage:
- PU insulation panel producing
- Function:
- Embossing, Laminating, Foaming, Forming
- Process speed:
- 13-15m/min
- Operation Language:
- English or customized
- Packaging Details
- The main machine of the whole production line would be loaded in containers with nude package; electric control cabinet and mould would be packed before into containers.
- Delivery Time
- Within 60-70days after the receipt of deposit
Manufacture polyurethane wall panel production line machine
SPECIFICATIONS 1 Production type totally continuous production with PLC controlling 2 Out line dimension of machine 57*1.2*2.5 m 3 Total machine weight 30 T 4 Processing speed 13-15m/Min 5 Main Power of production 20KW 6 PU foam thickness 10-16mm 7
Standard Sandwich Panel Size in width 380mm for exterior wall panel; 200-500mm for interior wall panel 8 Sandwich panel length as per the customer need 9 The thickness of panel upper sheet 0.3-0.5mm 10 Panel bottom material fibre-glass aluminium foilDetailed Images
Embossing with different patterns rollers.
Flange forming process

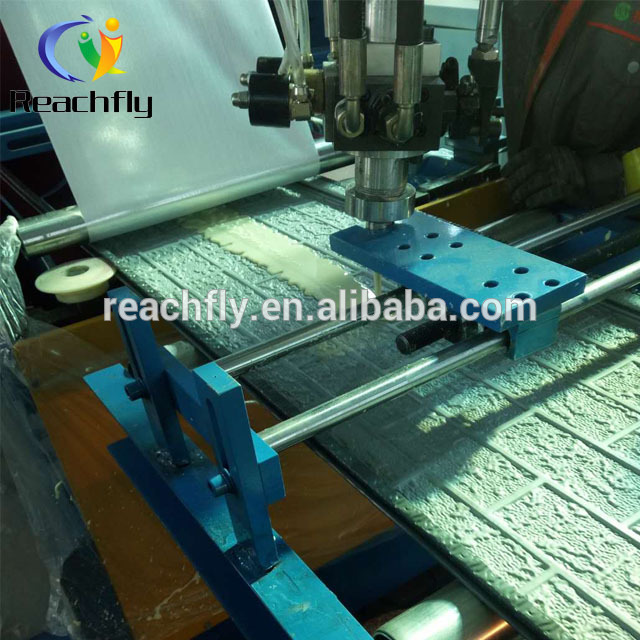

Polyurethane foaming process

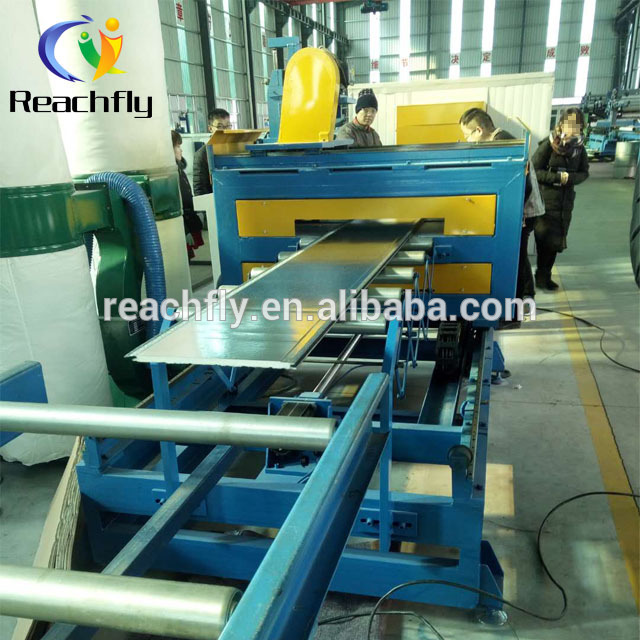

Finished panel

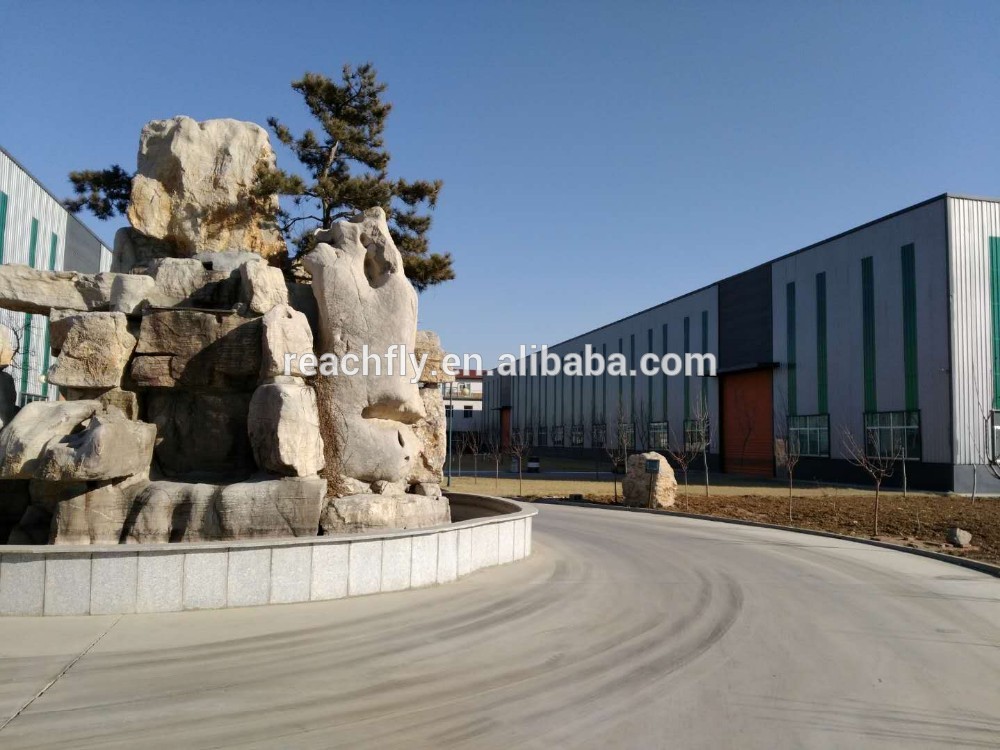

Our company
Qingzhou Reachfly Environment Technoiogy CO., Ltd
Qingzhou Reachfly Environment Technology Co., Ltd is a integrated high-tech enterprise which focuses src= ' /upLoad/HTB1o_U8mgLD8KJjSszeq6yGRpXaJ.jpg ' style= ' width: 371px; height: 371px; margin-left: 0px; margin-top: 0px; ' />
1: Consultation for free before buying.
2. Design according to customer's request after contract.
3. Testing and training after production.
4. Deliver and guide installation.
5. Engineers available to service machinery overseas.
6. Technical service after sales for free.
