auto control steel coil aluminium coil cut to length line for metal working

Quick Details

Condition:

New

Place of Origin:

Zhejiang, China (Mainland)

Brand Name:

MACTEC

Model Number:

MCTL1500

Voltage:

380v

Rated Power:

44kw

Dimension(L*W*H):

22x7x2M

Weight:

18ton

Certification:

CE,BV,SGS

Warranty:

15MONTHS, 15MONTHS

After-sales Service Provided:

Engineers available to service machinery overseas

Name:

auto control steel coil aluminium coil cut to length line

Operation Worker:

>

Production Speed:

120M/minute

Production Capacity/8hours:

50000Meters

Raw Material:

custom

Machine Color:

Bule / White

Total Power:

44kw

Total Installation Size:

22x7x2M

Certificate:

CE,BV,SGS

Packaging & Delivery

Packaging Details

Delivery Time

120 days for cut to length line

Specifications

cut to length line
Speed: 120m/min slitting
70m/min shearing
Thickness: 0.3-5.0mm
Precision:1mm/sm

Auto control steel coil aluminium coil cut to length line for metal working

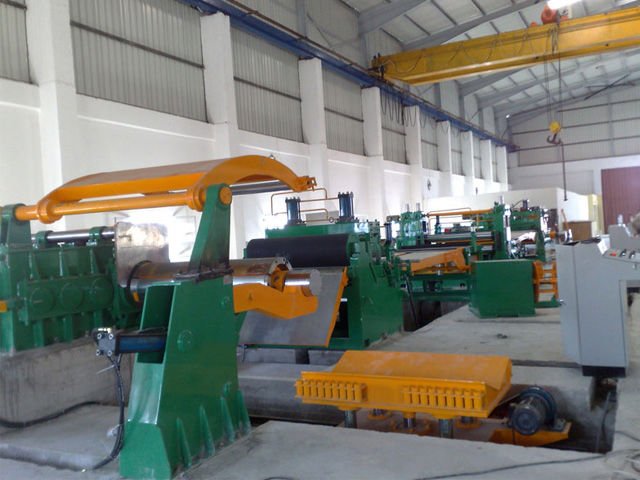

This cut to length line and slitting section can be combined in one line to save the space and cost. It mail consist of decoiler, flattening equipment, shearing/slitting system, stacker/recoiler, controlled by PLC unit, only need 2-3 personnel to operate it.



Material Specification:

Coil ID: 508, 610mm or customized

Coil Width: max 2000mm

Coil Weight: max 20000kgs

Thickness: Cold Rolled 0.3-3mm

Hot Rolled 0.5-3mm, 2-4mm

Total Power: about 70kw per different specification

Level Roller: about 13 pcs per different specification



Cut to Length Line

Shearing Length: 300-6000mm

Speed: max 20 pcs/min (cut length 2000mm)



Slitting Line

Slitting cutter: Cold Rolled max 15 pcs

            Hot Rolled max 6 pcs

Speed: 0-120m/min



Customized design is available according to customer’s requirement.
