Hydraulic GI decoil machine

Quick Details

Place of Origin:

Shandong, China (Mainland)

Brand Name:

REACHFLY

Model Number:

REACHFLY--decoiler

After-sales Service Provided:

Engineers available to service machinery overseas

Name:

15T steel coil decoiler, hydraulic decoiling machine

Width of strip steel:

800-1250mm

Base plate:

Hot aluminum plate,aluminum alloy plate

Outer diameter of steel roll:

1500mm

Inner diameter of steel roll:

508mm

Max. steel roll weight:

15-25 T

Frame and base:

welding low carbon steel

Valve:

Cast steel

Main sliding block:

casting aluminum brass

Mandrel and pull rod:

40Cr.

Packaging & Delivery

Packaging Details

naked, PE film package or customized.

Delivery Time

Within 45 working days after received deposit

Product Description15T steel coil decoiler, hydraulic decoiling machine

The production line of colored steel sheet is a complete of production equipment for colored steel sheet, and the process is as follows: make the steel coil strips be subject to surface degreasing treatment, then apply multi-layer organic coatings (e.g., nano-coating, self-cleaning coating, scratch-resistant coating, fingerprint-resistant coating etc. )>

Outer diameter of steel roll Max. φ 1500mm Mandrel retracting size  diameter of 450mm Inner diameter of steel roll Min. φ 508mm Mandrel expanding size diameter of 508mm Width of steel roll 800-1250mm retracting and expanding actuator 1 rotating hydraulic cylinder Maximum steel roll weight 15-25 Ton  Rubber sleeve 51mm thickDetailed Image

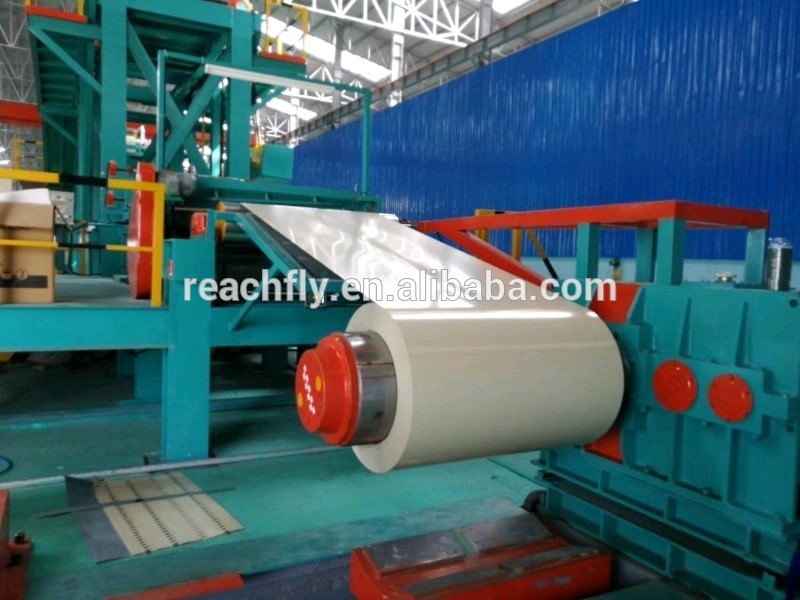

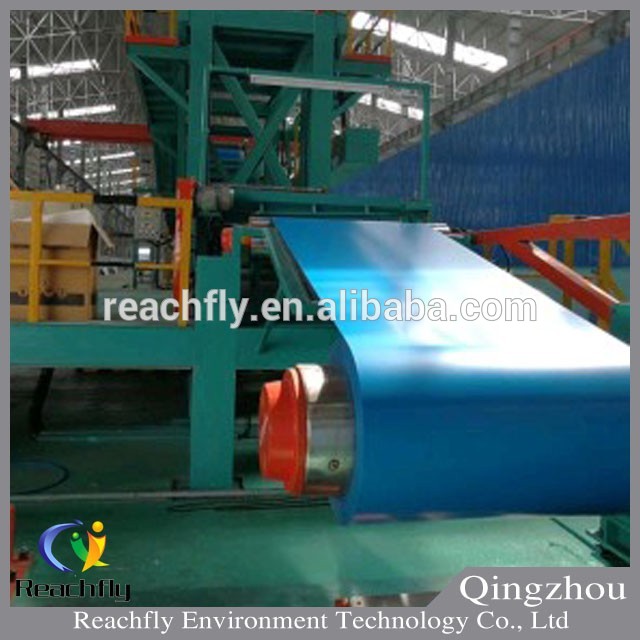

1) insert the steel coil into the decoiler mandrel, and expand the mandrel to tighten and fix.  the decoiler mandrel will be driven to rotate by variable frequency AC motor, so as to make sure the steel sheet keep the required certain backward tension.

2) the decoiler mandrel is cantilever type; driven by chains or standard reducer.

3) The gearbox base is made up by heavy steel plate.

4) 4 expandable valves in the mandrel head, the expanding and retracting of the valves are controlled by the revolving hydraulic cylinder at the mandrel end.

5) 4 main sliding blocks made of bronze in the mandrel.

6)  the maximum diameter of the expanded mandrel with rubber sleeve is 508or 610mm.

Our Company

Qingzhou Reachfly Environment Technology Co., Ltd is a integrated high-tech enterprise which focuses src= ' /upLoad/HTB1b.tvohrI8KJjy0Fpq6z5hVXa5.jpg ' style= ' width: 200px; height: 200px; margin-left: 0px; margin-top: 0px; ' />FAQ

Q: Are you trading company or manufacturer ?

A: We are factory. Welcome to visit any time.

Q: How long is your delivery time?

A: According to customer's requirements for the equipment quantity.
